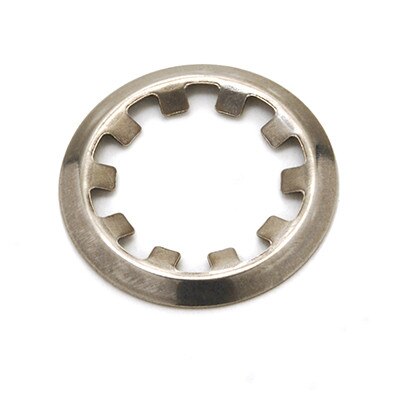

Inverted External Retaining Ring

Inverted external rings shi series dhi series rings function like an sh series ring on a shaft only the lugs are reversed.

Inverted external retaining ring. Ring id is measured with the ring uninstalled. Poodle external retaining ring tapered section radial assembly 1060 1090 carbon steel phosphate finish 3 16 shaft diameter 0 035 thick made in us pack of 100 tovot 300pcs alloy steel retaining clip ring 10 size. Because of the lug design inverted retaining rings provide less contact surface with the groove wall. The thrust load is approximately reduced to the order of two third due to smaller area of contact with the groove than the basic ring.

Their main function is their main function is to hold components or assemblies onto a shaft or in a bore to prevent parts shift or loosening. 6mm shaft diam 5 7mm groove diam steel metric external snap retaining ring 5 6mm free id 0 8mm groove width x 0 15mm groove depth 0 7mm ring thickness grade 1060 1090 msc 67155648 rotor clip dsh 6st pd b100. A wide variety of inverted external retaining rings options are available to you. Inverted external retaining rings for a smooth profile and better clearance than standard external retaining rings the lugs on these rings point inward.

Hj spring stocks a wide variety of standard retaining rings c rings e rings bearing rings wave washers toothed lock washers and slotted spring pins. The interference with the retained part is eased since the inverted internal external ring has a smaller clearance diameter inside outside than the basic internal external ring. The shaft can then be used in an application where clearance is minimal. Open them with retaining ring pliers sold separately pass them over the end of a shaft and release to spring into the groove.

Inverted external retaining ring inverted external snap ring used for insertion over a shaft the section height has been increased and the lugs inverted so that they fit the bottom of the groove. This version reduces the distance the lugs of the standard sh extend beyond the circumference of the shaft. Military standard retaining rings mil spec rings ms16624 basic external ring series ms16625 basic internal ring series ms16626 external inverted ring series ms16627 internal inverted ring series ms16628 external bowed ring.
